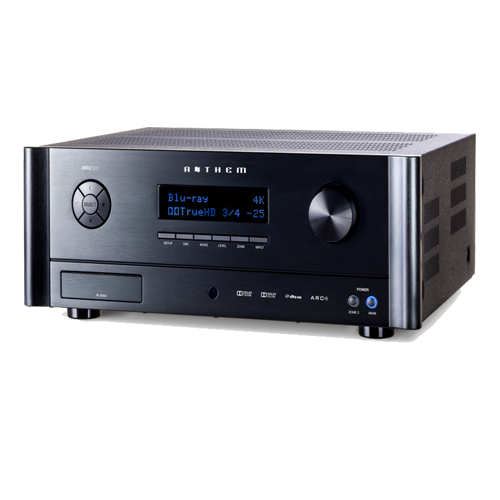

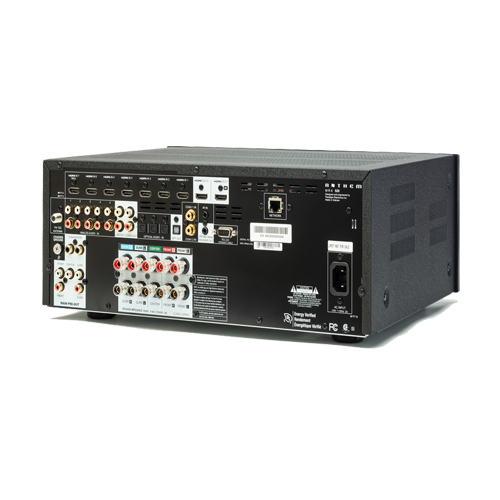

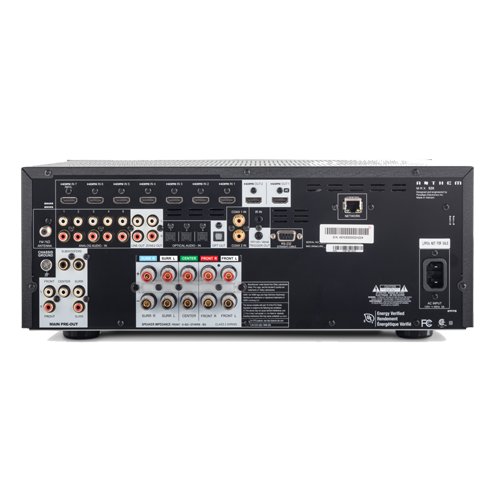

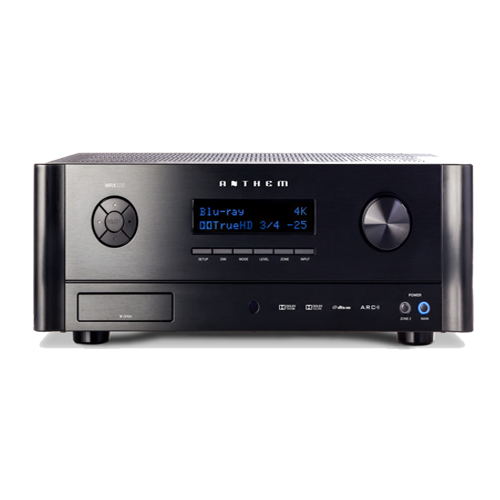

ANTHEM MRX 520 RECEIVER Product Description
| Brand | Anthem | ||||
| PREAMPLIFIER | Maximum Output (<0.1% THD) | 4.2 Vrms, subwoofer channel 5.2 Vrms |
|||
| Frequency Response (2 Vrms output) |
10 Hz — 31 kHz (+0, -0.25 dB) |
||||
| Frequency Response, Analog-Direct (2 Vrms output) |
10 Hz — 48 kHz (+0, -0.25 dB) |
||||
| THD+N (2 Vrms output) |
-95 dB | ||||
| S/N Ratio (2 Vrms output, IEC-A filter) |
110 dB | ||||
| PREAMPLIFIER + AMPLIFIER (1 W OUTPUT) | MRX 1120 / MRX 720 | -88 dB channels 1-5, -75 db back/height |
|||
| MRX 520 | -88 dB | ||||
| SPEAKER IMPEDANCE |
Compatible with 4 Ohms or higher impedance. |
||||
| MAXIMUM CONTINUOUS OUTPUT (1% THD) | Channels 1-5, Two Driven into 8 Ohms |
Channels 1-5, Two Driven into 6 Ohms |
Remaining Channels, Two Driven into 8 Ohms |
Remaining Channels, Two Driven into 6 Ohms |
|
| MRX 1120 |
140 W | 170 W | 60 W | 75 W | |
| MRX 720 | 140 W | 170 W | 60 W | 75 W | |
| MRX 520 | 100 W | 130 W | n/a | n/a | |
| POWER CONSUMPTION | Typical Load | Standby | Standby IP Control Enabled | Standby HDMI Bypass Enabled | |
| MRX 1120 |
570 W | 0.3 W | 4.7 W | 8.2 W | |
| MRX 720 | 485 W | 0.3 W | 4.7 W | 8.2 W | |
| MRX 520 | 365 W | 0.3 W | 2.4 W | 5.8 W | |
| DIMENSIONS | Height | 6-1/2″ (16.5 cm) | |||
| Height with Rackmount Kit | 4U | ||||
| Width | 17-1/4″ (43.9 cm) |
||||
| Depth (not including power cord) |
14-3/4″ (37.5 cm) |
||||
| WEIGHT | MRX 1120 | 32 lb (14.5 kg) | |||
| MRX 720 | 31 lb (14 kg) | ||||
| MRX 520 | 28.2 lb (12.8 kg) | ||||
| POWER REQUIREMENT | 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. |
|||
| 220-240 V version: |
In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. |
||||
